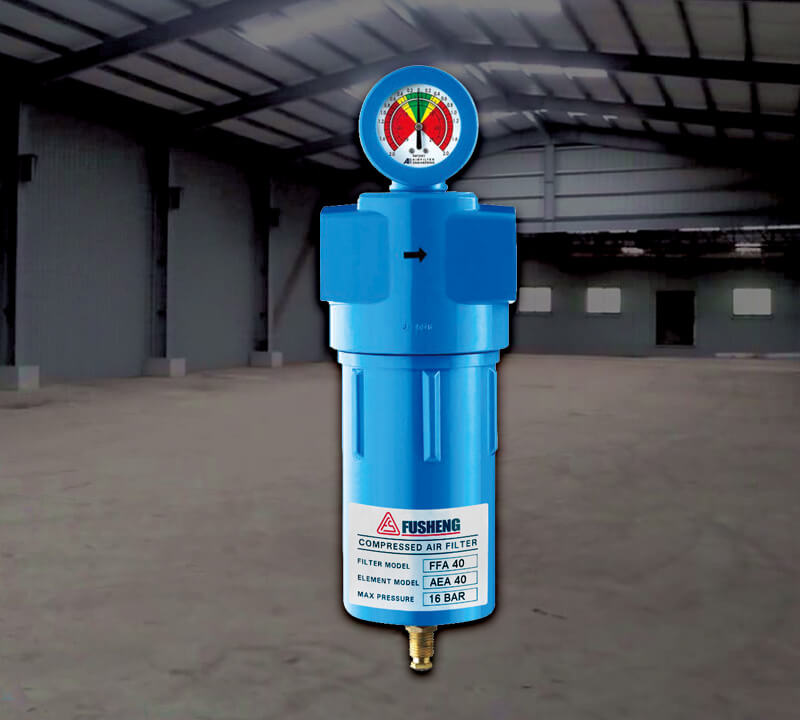

High Efficiency Air Filter | Fusheng FFA Series

To comply with the compressed air quality standard set by ISO 8573.1:2012, it is often necessary to add extra FFA Series filters to process the compressed air for any solid dust and oil content to achieve the required air quality.

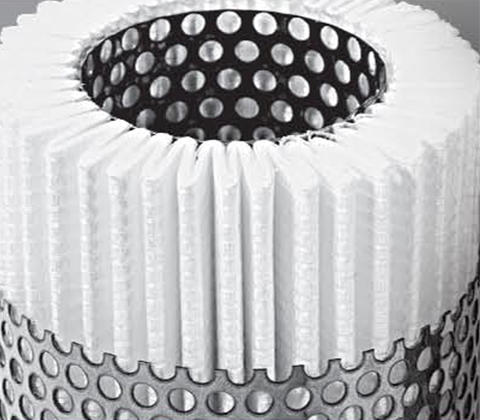

Highly effective filtration area.

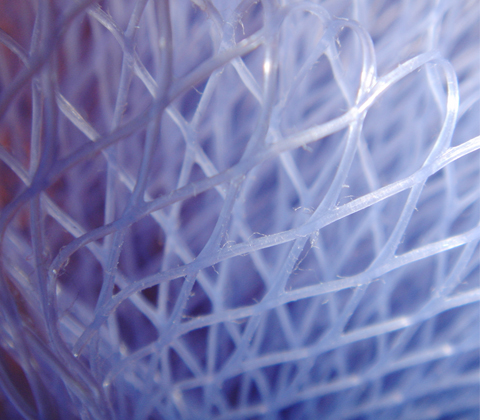

Filter grades with different ranges of air treatment capacity available for different applications to provide complete compressed air filtration.

Effectively filter out solid dust from 3µm to 0.01µm and residual oil content to 0.003μm though a carbon filter (H level filter installation required at the front end).

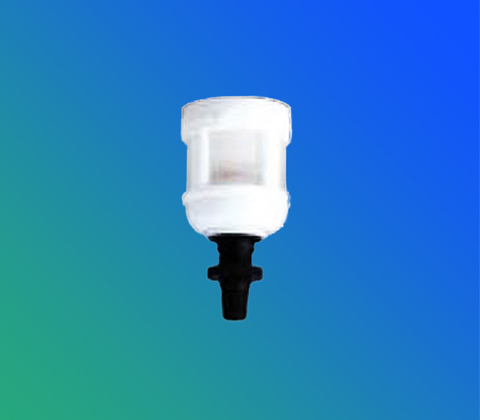

Automatic drain valve included internally.

Painting

General Factory

Filter Model	Diameter ( inch)	Flow Rate (m³/min)	Element Model	Element Quantity	Max. Operating Temp.	Initial Pressure Drop
FFA-005-grade	1/2"	0.66	AEA05-grade	1	60℃	0.03bar g
FFA-008-grade	1/2"	0.96	AEA08-grade	1	60℃	0.05bar g
FFA-010-grade	1/2"	1.32	AEA10-grade	1	60℃	0.09bar g
FFA-015-grade	3/4"	1.98	AEA15-grade	1	60℃	0.1bar g
FFA-020-grade	1"	3.3	AEA20-grade	1	60℃	0.1bar g
FFA040-grade	1 1/2"	5.7	AEA40-grade	1	60℃	0.1bar g
FFA-060-grade	1 1/2"	9	AEA60-grade	1	60℃	0.1bar g
FFA-075-grade	1 1/2"	13.32	AEA75-grade	1	60℃	0.1bar g
FFA-125-grade	2"	17.46	AEA125-grade	1	60℃	0.1bar g
FFA-175-grade	2 1/2"	26.16	AEA175-grade	1	60℃	0.1bar g
FFA-250-grade	3"	37.5	AEA250-grade	1	60℃	0.1bar g
FFA-300-grade	3"	46.62	AEA300-grade	1	60℃	0.1bar g

Model- High Pressure	pipe size ( inch)	flow rate ( mm)	element model	Filter qty	Max. Operating Temp.	Initial Pressure Drop
FFA-005-H5	1/2"	1.49	AEA05-grade	1	60℃	0.03bar g
FFA-008-H5	1/2"	2.16	AEA08-grade	1	60℃	0.05bar g
FFA-010-H5	1/2"	2.77	AEA10-grade	1	60℃	0.09bar g
FFA-015-H5	3/4"	4.46	AEA15-grade	1	60℃	0.1bar g
FFA-020-H5	1"	7.43	AEA20-grade	1	60℃	0.1bar g
FFA-040-H5	1 1/2"	12.83	AEA40-grade	1	60℃	0.1bar g
FFA-060-H5	1 1/2"	20.25	AEA60-grade	1	60℃	0.1bar g
H = 50 Bar
