INSTRUCTIONS

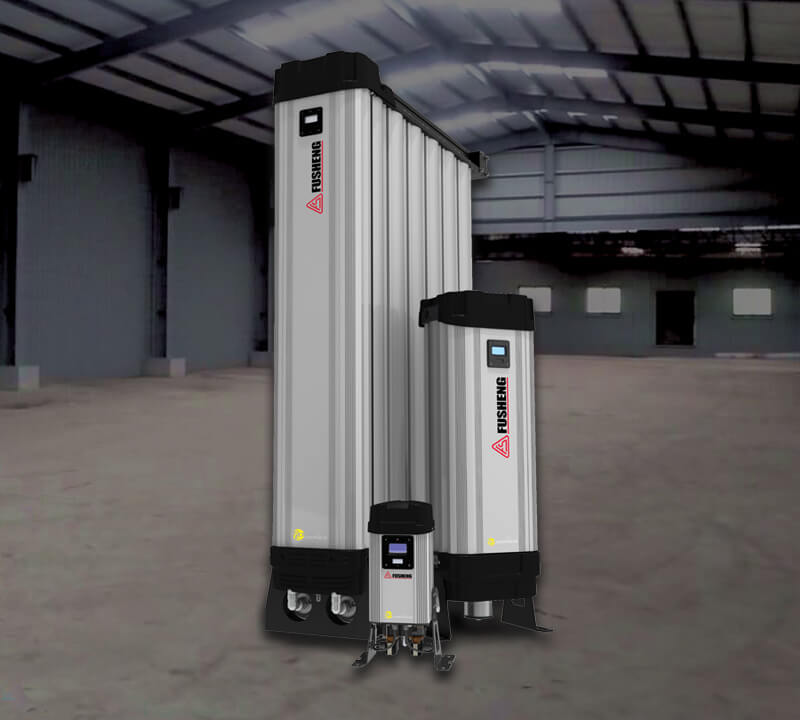

The FDL series adsorption dryer provides high quality clean air for use in pharmaceutical, food, and medical grade production lines. It is also equipped with the option of a dew point temperature control function. Extending adsorption time can fulfill the demand for lowering the average air delivery volume. This series has been qualified with PED, CRN and CE certifications.

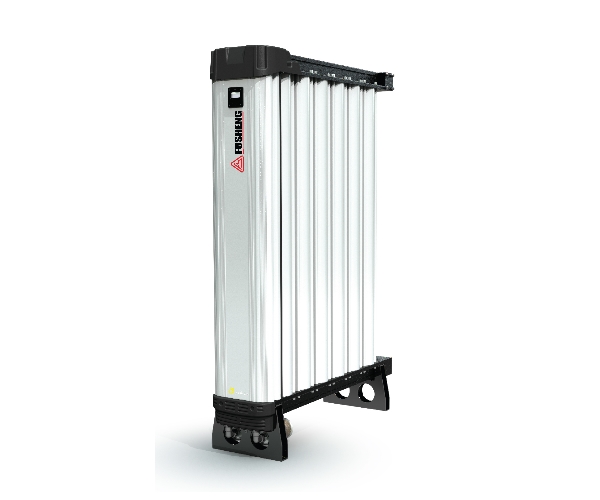

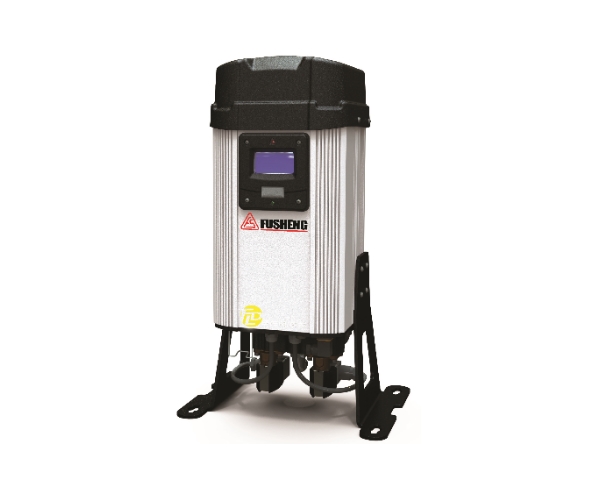

FDL Series
FDL Series
FDL Series
FDL Series
FDL Series
FDL Series
Features

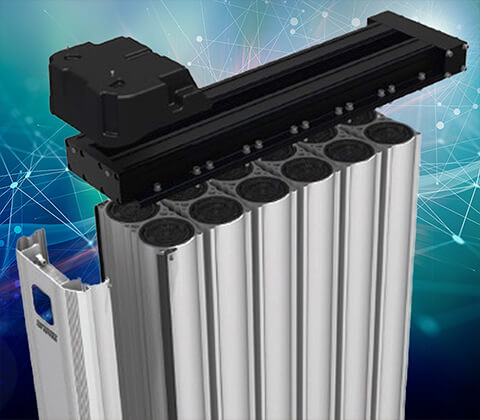

Modular design:This series offers the potential for further plant expansion or 100% standby capability at a fraction of the cost.

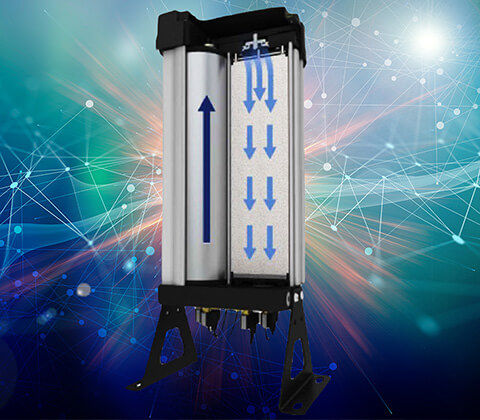

Reliable Performance:Long-life pneumatic cylinder valves provide reliable switching and high-quality desiccants ensure stable dew points are maintained.

Corrosion Protected:Corrosion is inhibited by alocroming and dry powder painting for an extended service life.

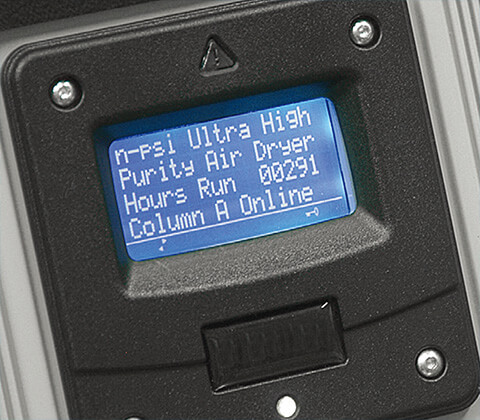

Variety of Function Options :Pressure dew point options at -40 oC and -70 oC are also available for general purpose and critical applications.

specification
SPECIFICATION
specNote
Model Diameter (inch) Flow rate (cfm) Flow rate (m³/min) Weight (kg) Dimension mm A(D) x B(L) x C(H)
3/8 24 0.68 25 1200 X 262 X 171
1 32 0.97 47 745 X 430 X 282
1 42 1.17 47 745 X 430 X 282
1 53 1.5 58 925 X 430 X 282
1 65 1.87 58 925 X 430 X 282
1 88 2.5 71 1100 X 430 X 282
1 106 3 83 1250 X 430 X 282
1 130 3.73 96 1500 X 430 X 282
1 176 5.01 118 1850 X 430 X 282
2 420 6 120 1308 X 430 X 618
2 360 7.82 224 1540 X 400 X 618
2 450 11.33 261 1890 X 400 X 618
2 600 15.85 343 1890 X 400 X 790
2 1/2 750 21.23 425 1890 X 400 X 956
2 1/2 900 23.45 470 1540 X 400 X 1290
2 1/2 1050 31.43 507 1890 X 400 X 1290
OPEN
CLOSE
INQUIRY
applications
Electronics
Chemical Analysis
Pharmaceuticals
